2.2 Hardware

State/Version: 20250223p1

2.2 Hardware

Network1

2.2 Baseline

2.2.0 Homelab Tier Ratings

  • Tier 0:
    • A completely fault-tolerant hardware with redundancy for every component.
    • Is crucial for the project.
    • IaaC (Infrastructure as a Code) (if capable).
    • Is part of the backup conzept.
  • Tier 1:
    • Is crucial for the project.
    • IaaC (Infrastructure as a Code) (if capable).
    • Is part of the backup conzept.
  • Tier 2:
    • Is crucial for the project.
    • No backups
    • Easy to replace
  • Tier 3:
    • Is optional to run the project.
    • Hardware runs experimental services
    • Failures have no impact on other components.

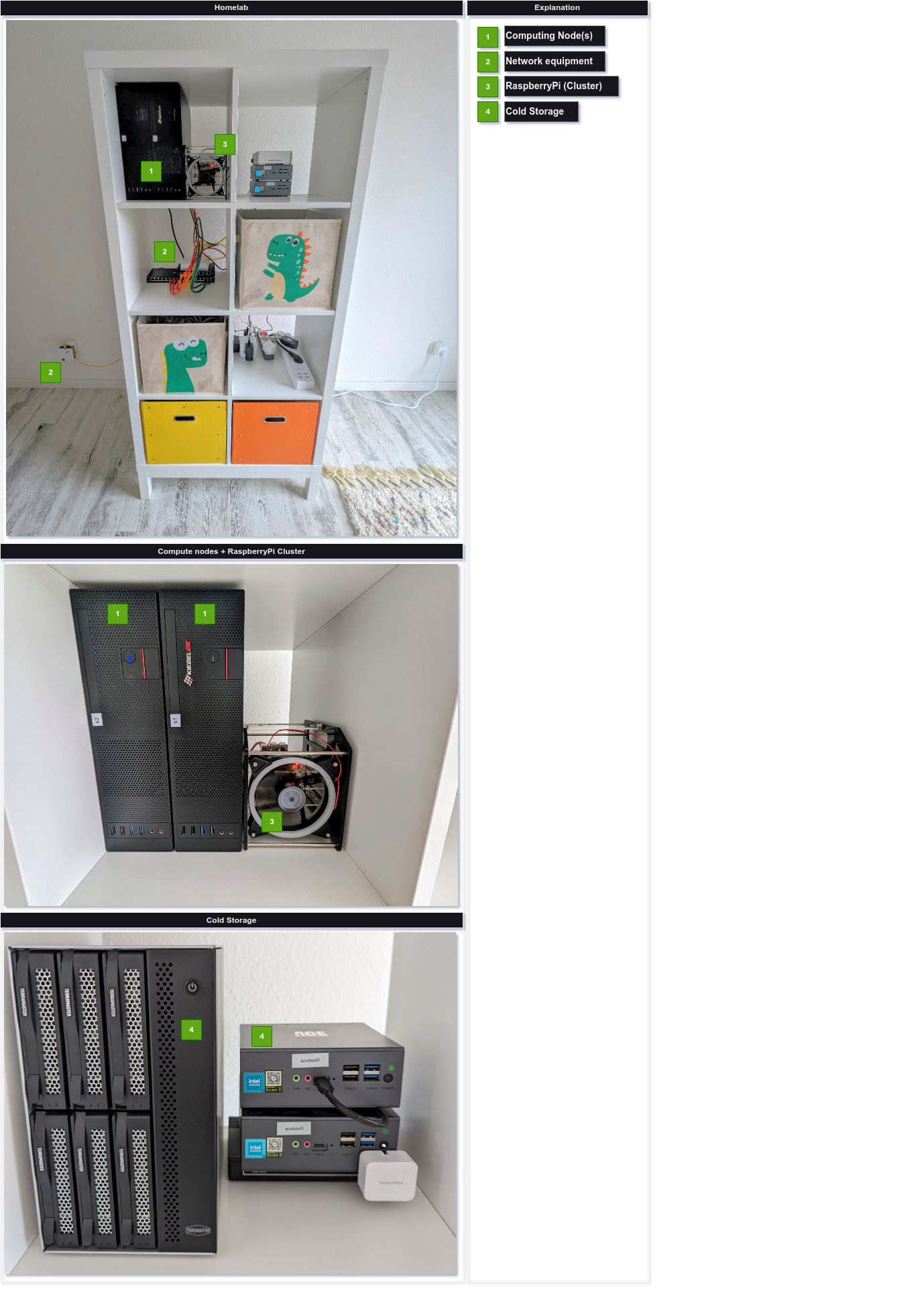

2.2.1 Computing node

  • Kiebel Micro X12
    • Tier 1
    • 2x Kingston FURY Beast 32GB, DDR4-3200 MHz
    • Intel Core i7-12700, 12x2.1 GHz
    • Kingston 1TB NV2 M.2 SSD PCIe 4.0

2.2.2 Managed Switch

  • TP-Link TL-SG116E
    • Tier 2

2.2.3 Router

  • Mikrotik RB951Ui
    • Tier 1

2.2.4 Raspberry Pi

  • Raspberry Pi 4b (4GB RAM)
    • Tier 2

2.2.5 Storage Systems

  • TerraMaster D6-320
    • Tier 3
